WATTS® 0204143 WATTS® 0204143

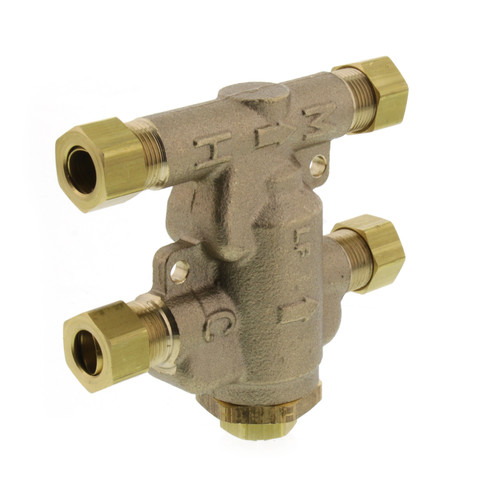

WATTS® Under Sink Guardian® 0204143 USG, LFUSG-B-M2 Thermostatic Mixing Valve, 3/8 in Nominal, Compression End Style, 150 psi Pressure, 0.25 gpm Flow, Brass Body, Domestic

  • PN: 104391
  • UPC: 098268548457
  • MPN: 0204143
  • Min. Qty: 1
  • Qty Interval: 1
Call for Additional Availability
WATTS® 0204143

DESCRIPTION

WATTS® Under Sink Guardian® Thermostatic Mixing Valve, Series: USG, 3/8 in Nominal, Compression, 150 psi, 80 to 120 deg F, 0.25 gpm Flow, Media: Hot/Cold Water, Brass Body, Buna-N® Rubber Disc, O-Ring Softgoods, Domestic/Import: Domestic

  • Specification Sheet

    https://stage-6900uts.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_Water_0204143_Specification_Sheet.pdf

SPECIFICATIONS

Lead Free
LFUSG-B
3/8 in
Compression
150 psi
80 to 120 deg F
Hot and Cold Water
Brass
Buna-N Rubber Disc/O-Ring

FEATURES

  • Lead free brass body construction
  • Installs easily between the stop valves and faucet
  • Includes tamper resistant locking nut to prevent accidental mis adjustment
  • Built-in check valves prevent migration of hot water to cold and cold water to hot water piping
  • Provided with cap for three port application
  • Integral strainer with 40 mesh stainless steel screens to filter out debris
  • 0.25 gpm (1 l/m) flow
  • 30 psi minimum supply pressure
  • 120 to 180 deg F hot inlet temperature
  • 39 to 80 deg F cold inlet temperature
  • 5 deg F minimum inlet temperature differential
  • 80 to 120 deg F temperature
  • 150 psi maximum pressure
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
